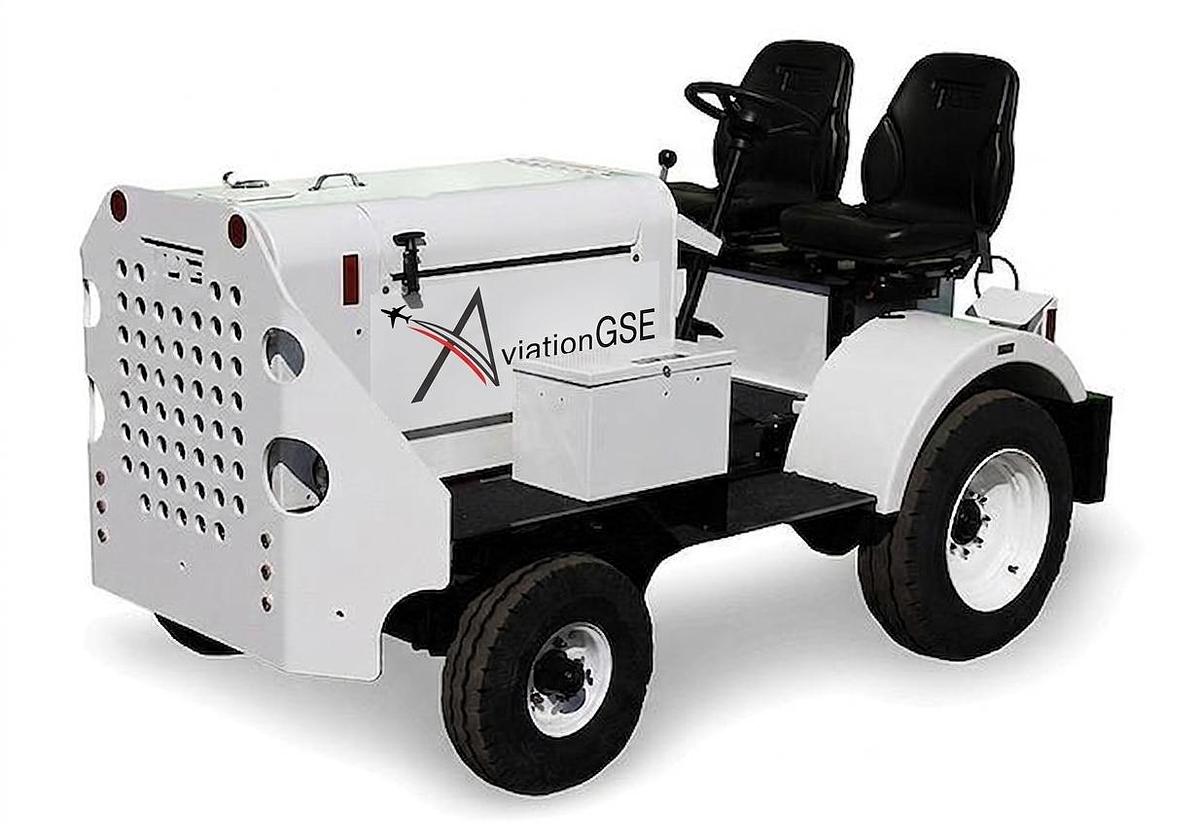

Textron GSE TUG MA-50/30

The Textron GSE Tug MA Series Tow Tractor is one of the most versatile and widely deployed aircraft tow tractors in ground support operations today. Designed to accommodate a broad spectrum of fleet requirements, the MA Series offers drawbar pull capacities ranging from 3,000 to 7,000 lbs and maximum gross tow loads from 60,000 up to 150,000 lbs, depending on configuration.

Engineered for flexibility, the MA Series can be equipped with multiple gasoline and diesel engine options to match performance, fuel preference, and maintenance strategy:

• Ford MSG-425 EFI 2.5L gasoline engine (current production)
• Ford 300 CID inline 6-cylinder gasoline engine (95 HP)
• Ford ESG-642 V6 4.2L gasoline engine
• Perkins 4.236 diesel engine (77 HP)
• Perkins 1104C-44 Tier II diesel engine (4.4L)
• Cummins 4B3.9C diesel engine (3.9L)
• Cummins B3.3 diesel engine (3.3L)

Transmission options include the PCS GM 4LHD automatic transmission (current production) or the proven Ford C6 automatic, delivering smooth power transfer and reliable ramp performance.

With compact dimensions of 102" × 57" × 60" (without cab) and a 59" wheelbase, the MA Series offers exceptional maneuverability in congested ramp areas and tight hangar spaces. Hydraulic vacuum-assist disc brakes on all four wheels provide dependable stopping power, while the semi-elliptical front spring suspension and rubber rear shock mounting enhance operator comfort and stability during towing operations.

Additional features include a 15.5-gallon fuel capacity with stainless steel or molded plastic fuel cell options, along with a 12V electrical system supported by alternator options up to 100 amps for reliable accessory and lighting performance.

From regional commuter aircraft to wide-body jets, the Textron GSE Tug MA Series delivers durable, configurable towing performance in a compact footprint. With modern EFI engine options and updated transmission systems available, this platform can be tailored to meet the operational demands and maintenance standards of FBOs, airlines, MRO facilities, and military operators. Contact us today to determine the right MA Series configuration for your fleet.
